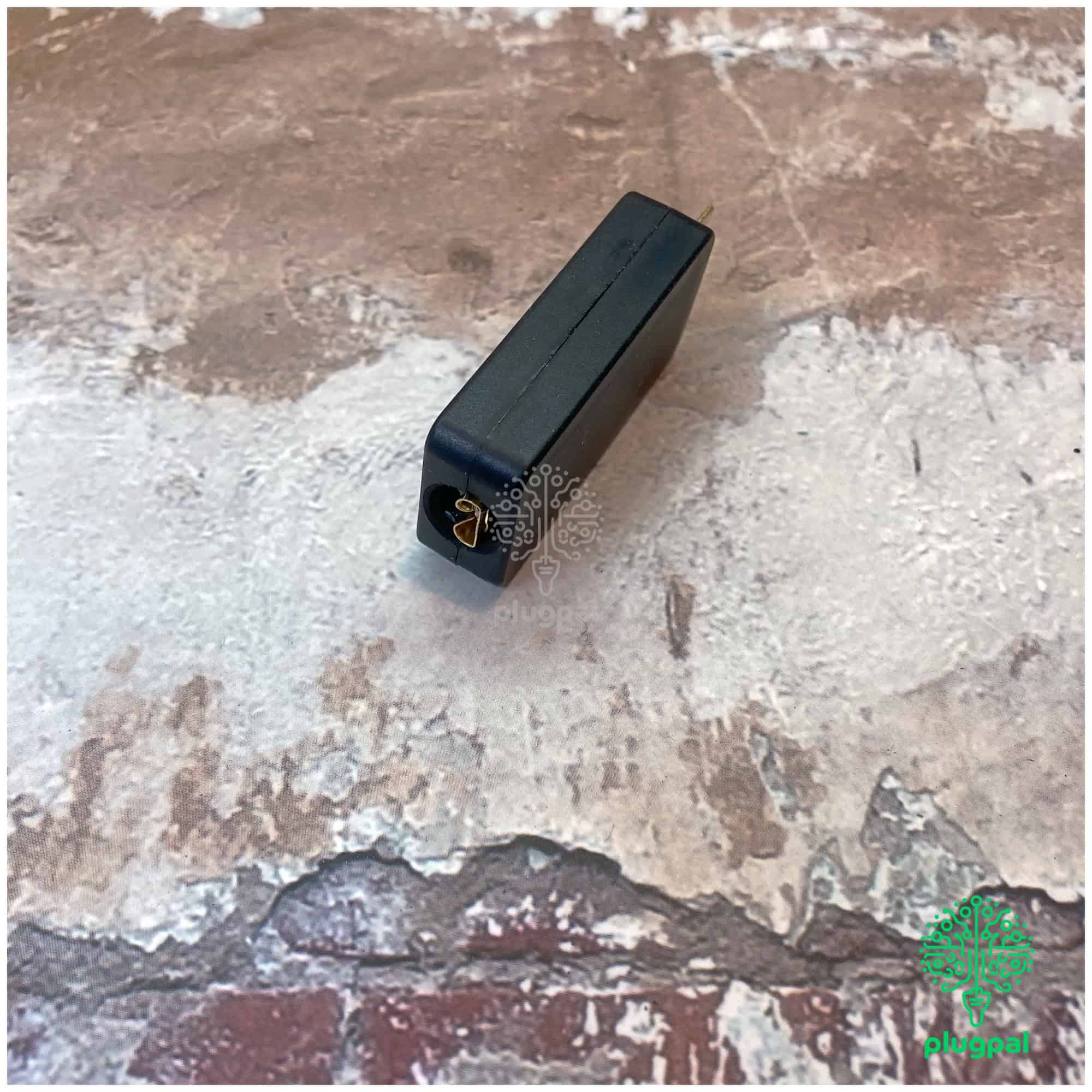

Up image of a PlugPal inline blocking diode, used in electronic circuits to prevent backflow of current, ensuring device safety and circuit integrity.

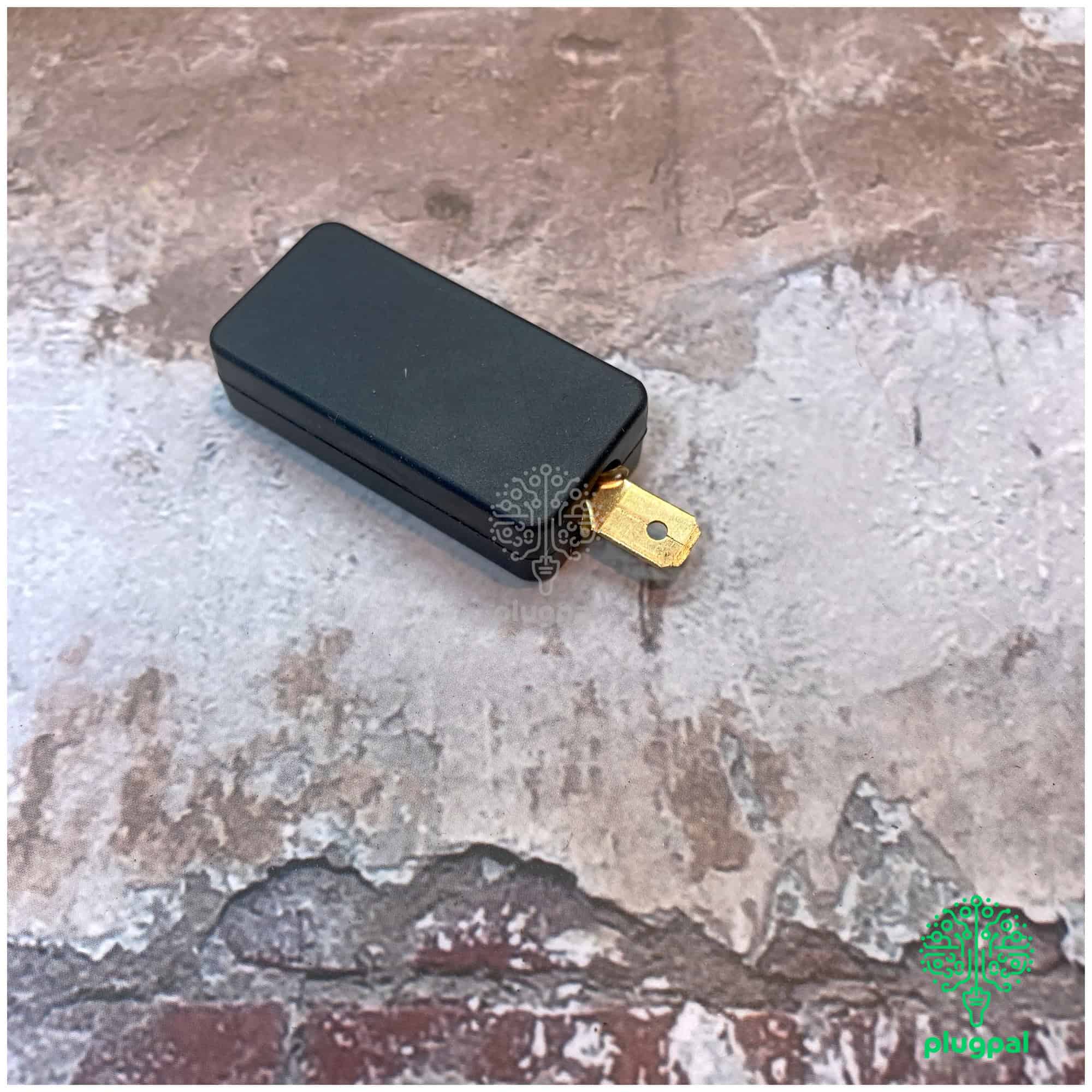

Compact inline blocking diode used in electronic circuits for preventing reverse current flow, essential for protecting components and ensuring circuit stability.

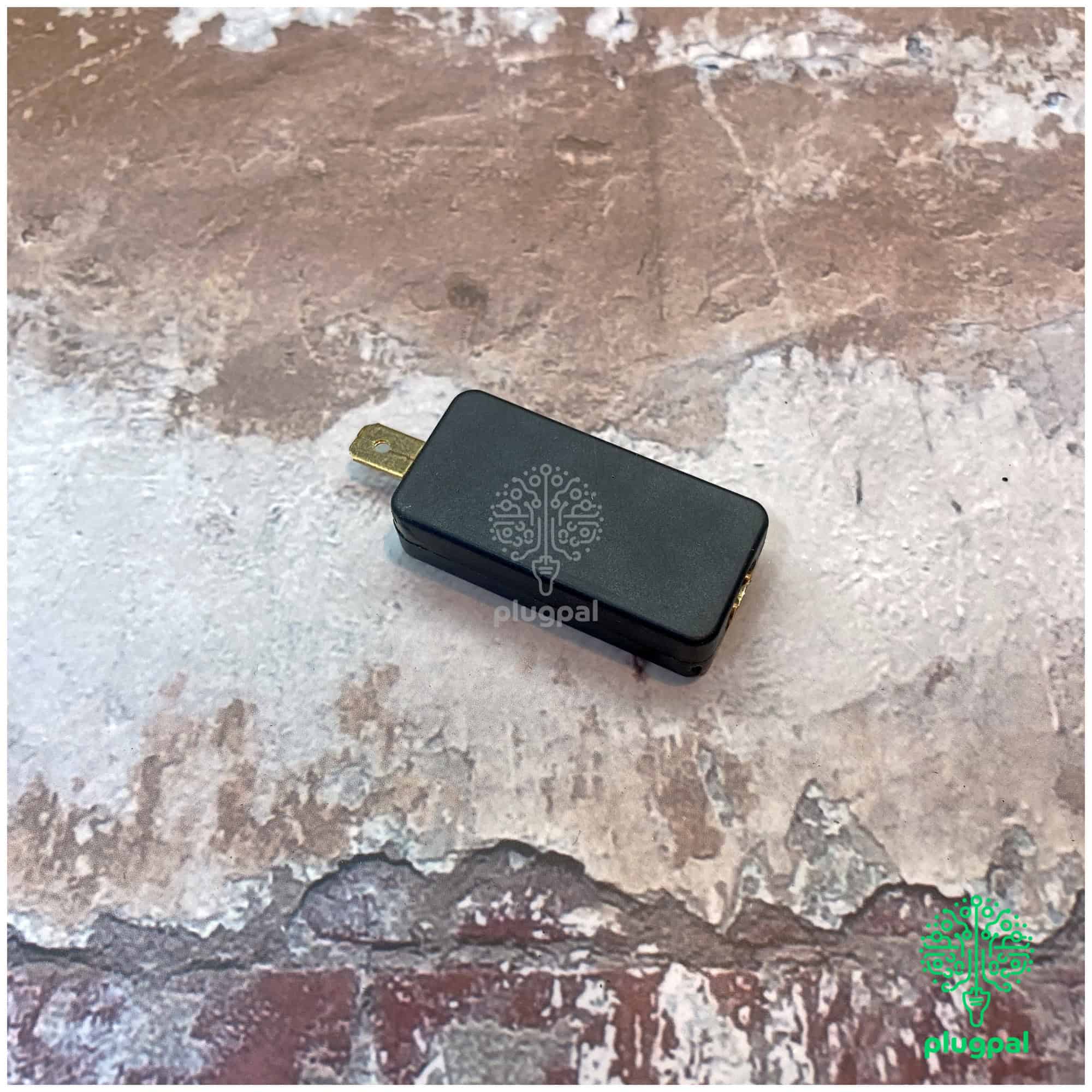

Compact inline blocking diode for electronic circuits, ideal for preventing backflow and protecting components in various electrical applications.
Inline Blocking Diode for Circuit Safety and Voltage Control.

Inline Blocking Diode

£7.50

The plugpal Inline Blocking Diode is a high-quality replacement and upgrade for original classic car and motorcycle diodes. Designed to prevent electrical backfeeding, this inline rectifier diode is suitable for a wide range of classic vehicles.

Free UK post and packing.


In stock (can be backordered)

SKU: inline-blocking-diode Category: Tags: , , , , , , , , , , , , , , , , , Brand:

Description

The plugpal Inline Blocking Diode is a high-quality replacement and upgrade for original classic car and motorcycle diodes. Designed to prevent electrical backfeeding, this inline rectifier diode is suitable for a wide range of classic vehicles, including:

  • MG B
  • MG Midget
  • Land Rover Series
  • Jaguar

…and many other classic British cars and motorcycles.



What Does an Inline Blocking Diode Do?

An inline blocking diode allows electrical current to flow in one direction only, preventing unwanted reverse flow (backfeeding) that can cause:

  • Warning lights to glow faintly
  • Circuits to operate incorrectly
  • Electrical system faults

Commonly used in classic vehicles in circuits such as:

  • Handbrake warning light circuits (e.g. MG models)
  • Headlight circuits
  • Auxiliary and modified wiring applications





Direct Replacement for Original Lucas Diodes

This unit is ideal as a replacement for original Lucas components and features:

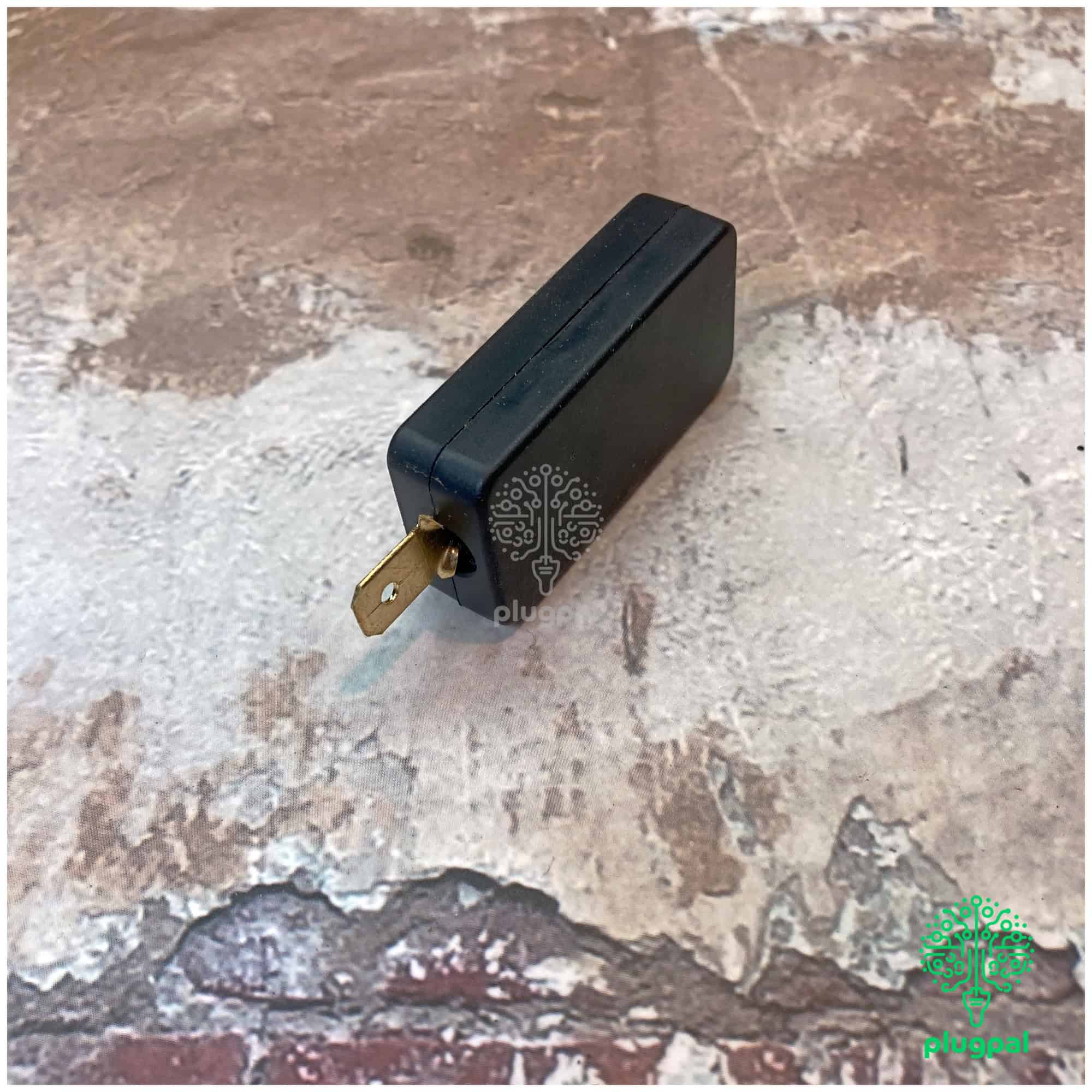

  • Male 6.3mm brass spade connector (Anode – A)
  • Female 6.3mm brass spade connector (Cathode – K)
  • Correct orientation for direct replacement installations
  • Durable ABS protective enclosure

When used as a replacement for an original Lucas diode, the connector configuration ensures correct polarity and simple installation.





Technical Specifications

  • Peak Repetitive Reverse Voltage: 1000V
  • Maximum RMS Voltage: 700V
  • DC Reverse Voltage: 1000V
  • Maximum Average Forward Rectified Current: 3A
  • Peak Forward Voltage at 3A DC: 1.2V

Built using quality automotive-grade components for reliable long-term performance.





Replaces Original Part Numbers

Compatible with original part numbers including:

  • Lucas Industries 83225B
  • AAU5034
  • AAU5034A
  • BHA5224





Reliable Classic Car Electrical Solution

Whether you’re restoring a classic British car, repairing a faulty warning light circuit, or preventing electrical backfeed in a custom wiring setup, the plugpal Inline Blocking Diode offers a dependable, easy-to-install solution.

Maintain proper electrical function and protect your classic vehicle’s wiring system with a high-quality inline rectifier diode.
