Solid State Voltage Stabiliser Instructions

Here are the solid state voltage stabiliser instructions for connecting up the plugpal Solid State Voltage Stabilisers.

10 Volt solid state voltage stabiliser

There are three connections to this item and should be connected thus:

  • Black Wire (Ground) – Connect to the vehicle chassis in a convenient location
  • Red Wire (Battery) – Connect to the wire that was on the ‘B’ terminal. This is 12 volts in.
  • Green Wire (Instrument) – Connect to the wire that was on the ‘I’ terminal. This is 10 volts out.
solid state voltage stabiliser instructions - Small electronic wiring harness with labelled power input and output connections, including ground strap for sensor or device integration.

5 Volt solid state voltage stabiliser

There are three connections to this item and should be connected thus:

  • Black Wire (Ground) – Connect to the vehicle chassis in a convenient location
  • Red Wire (Battery) – Connect to the wire that was on the ‘B’ terminal. This is 12 volts in.
  • Yellow Wire (Instrument) – Connect to the wire that was on the ‘I’ terminal. This is 5 volts out.

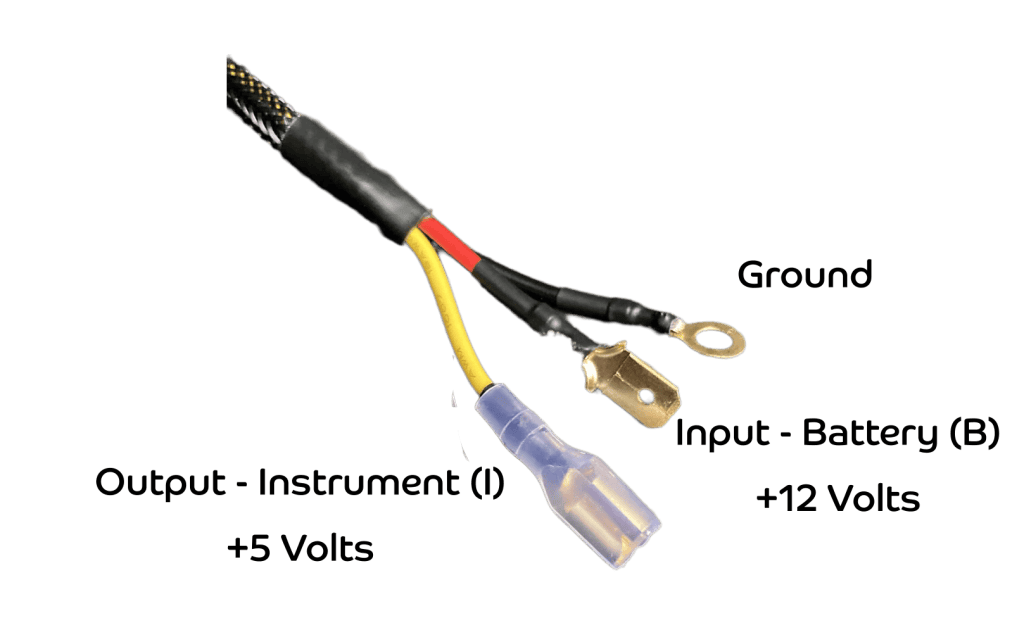

solid state voltage stabiliser instructions - High-quality electrical cable with terminal connectors and insulating covers for safe and reliable power connections. Perfect for electrical installations and repairs.
