Inline Blocking Diode Instructions
Here are the inline blocking diode instructions for connecting up the plugpal inline blocking diode

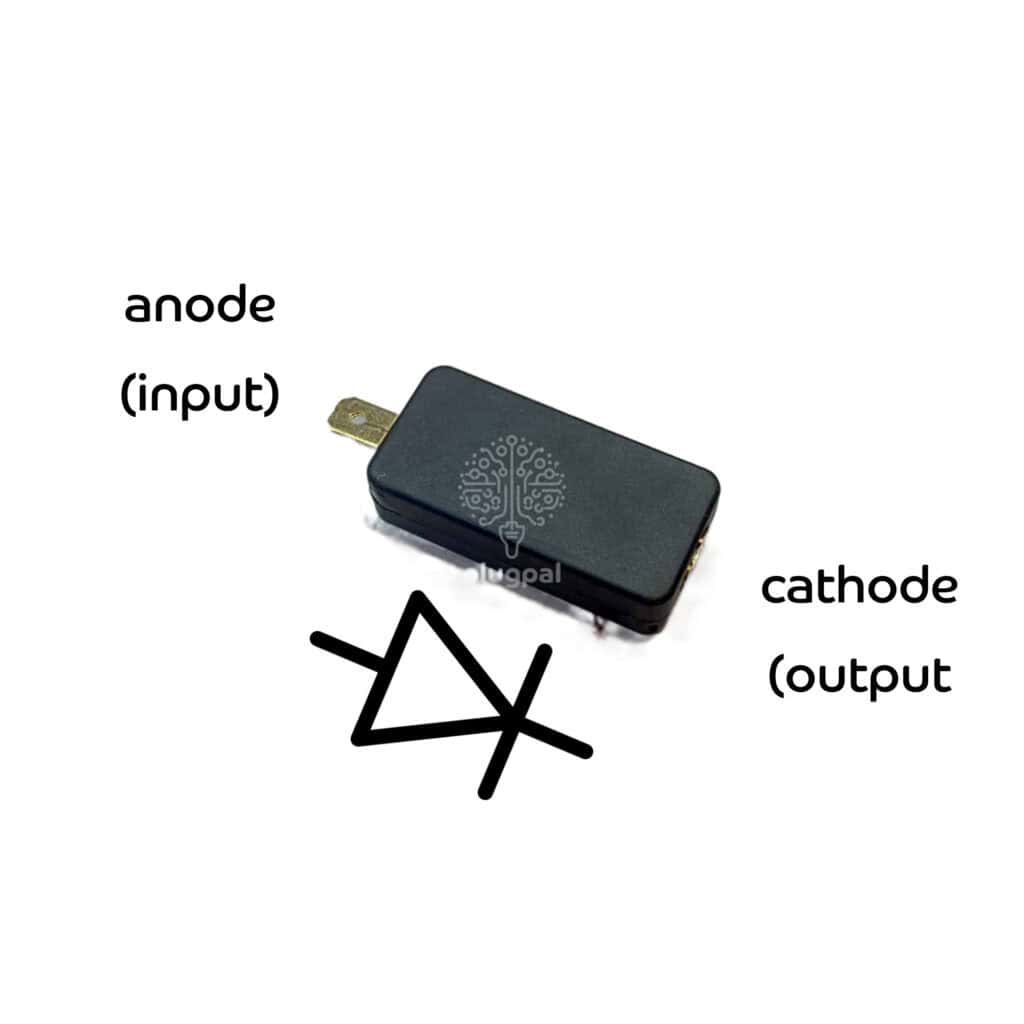

inline blocking diode
This blocking diode is designed for ‘inline’ applications where it is inserted directly in the wiring harness, either as a direct replacement for an original diode or as protection for a new accessory.
The anode is the male terminal and is where the current enters, the cathode is the female terminal and is where the current exits on its way to the light or accessory.
