Description

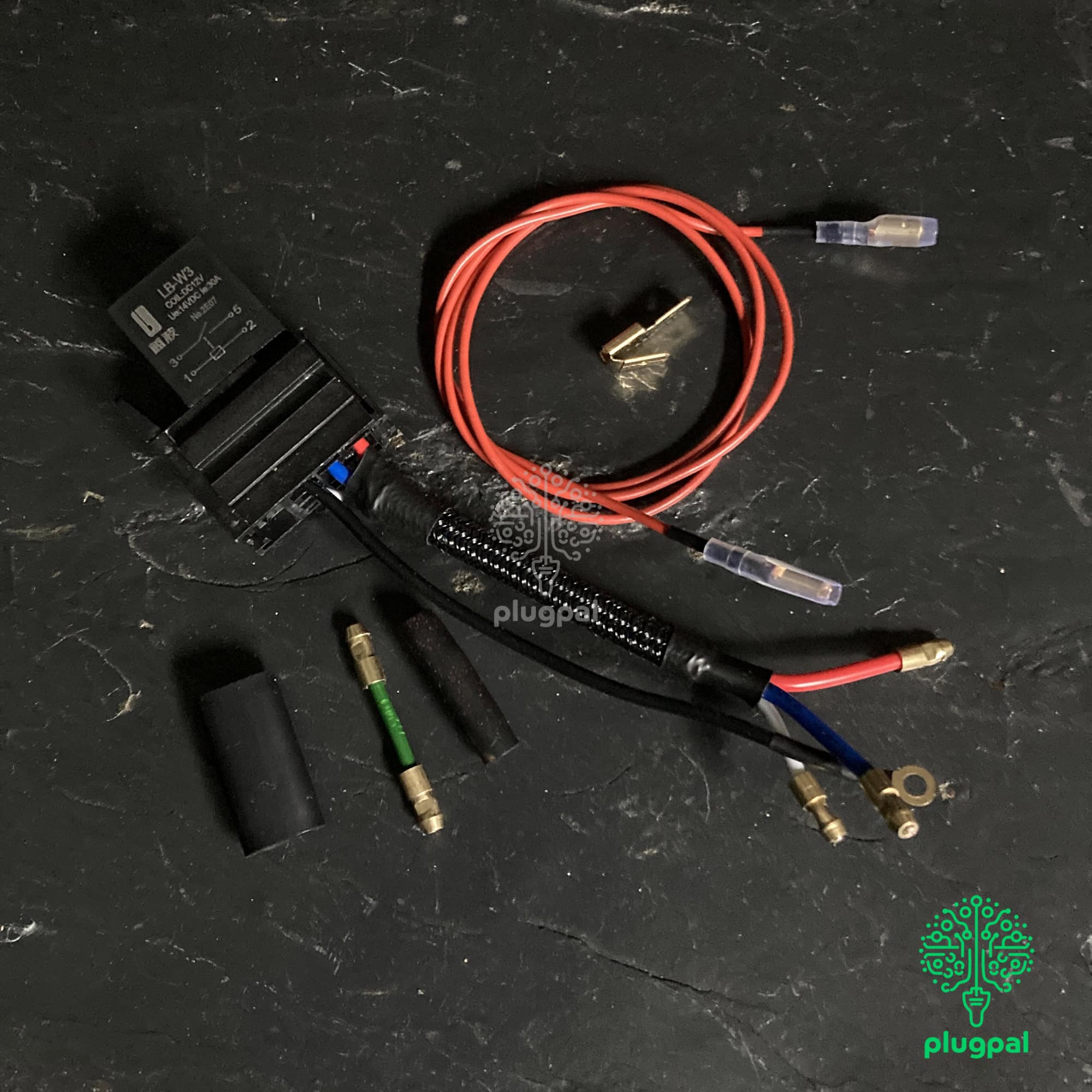

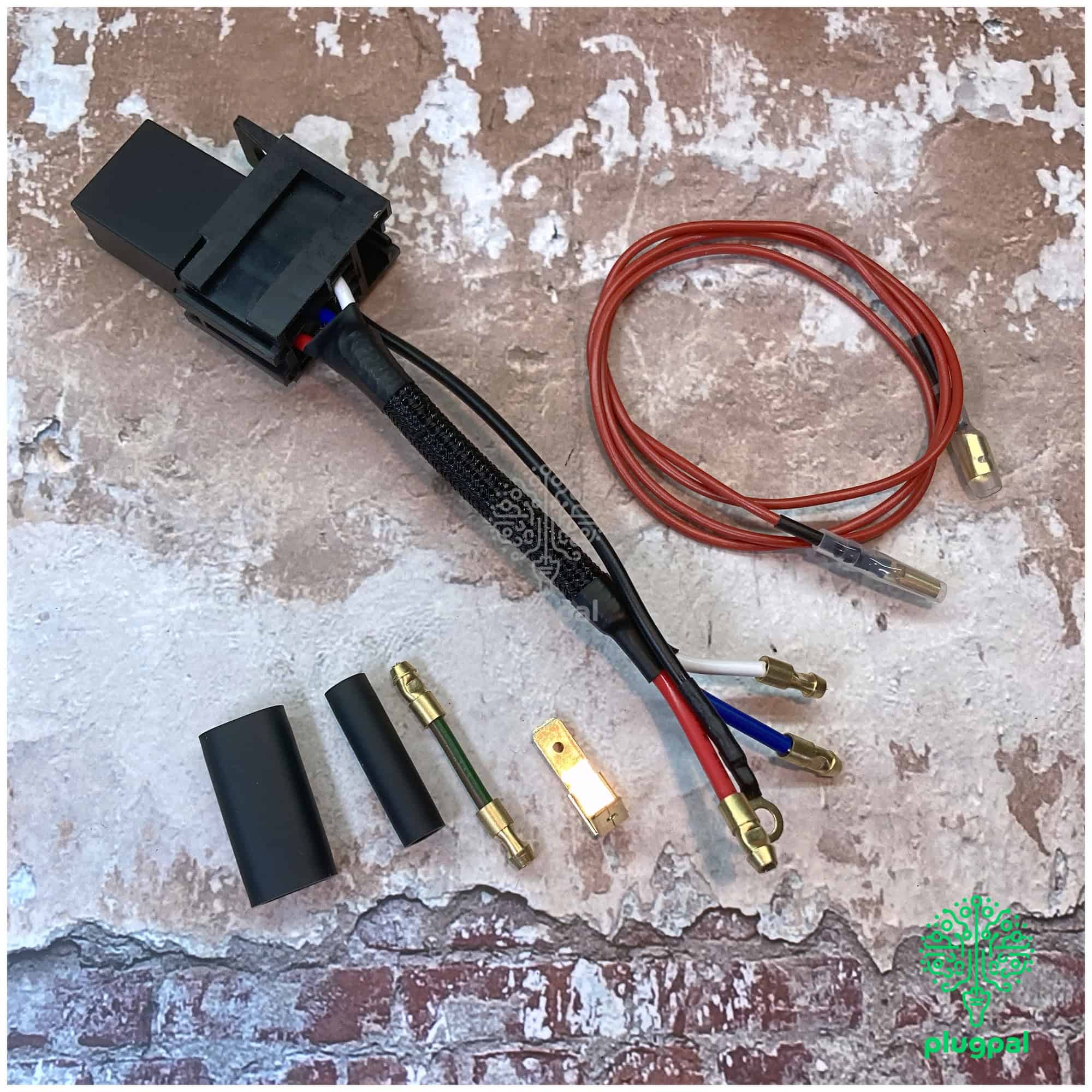

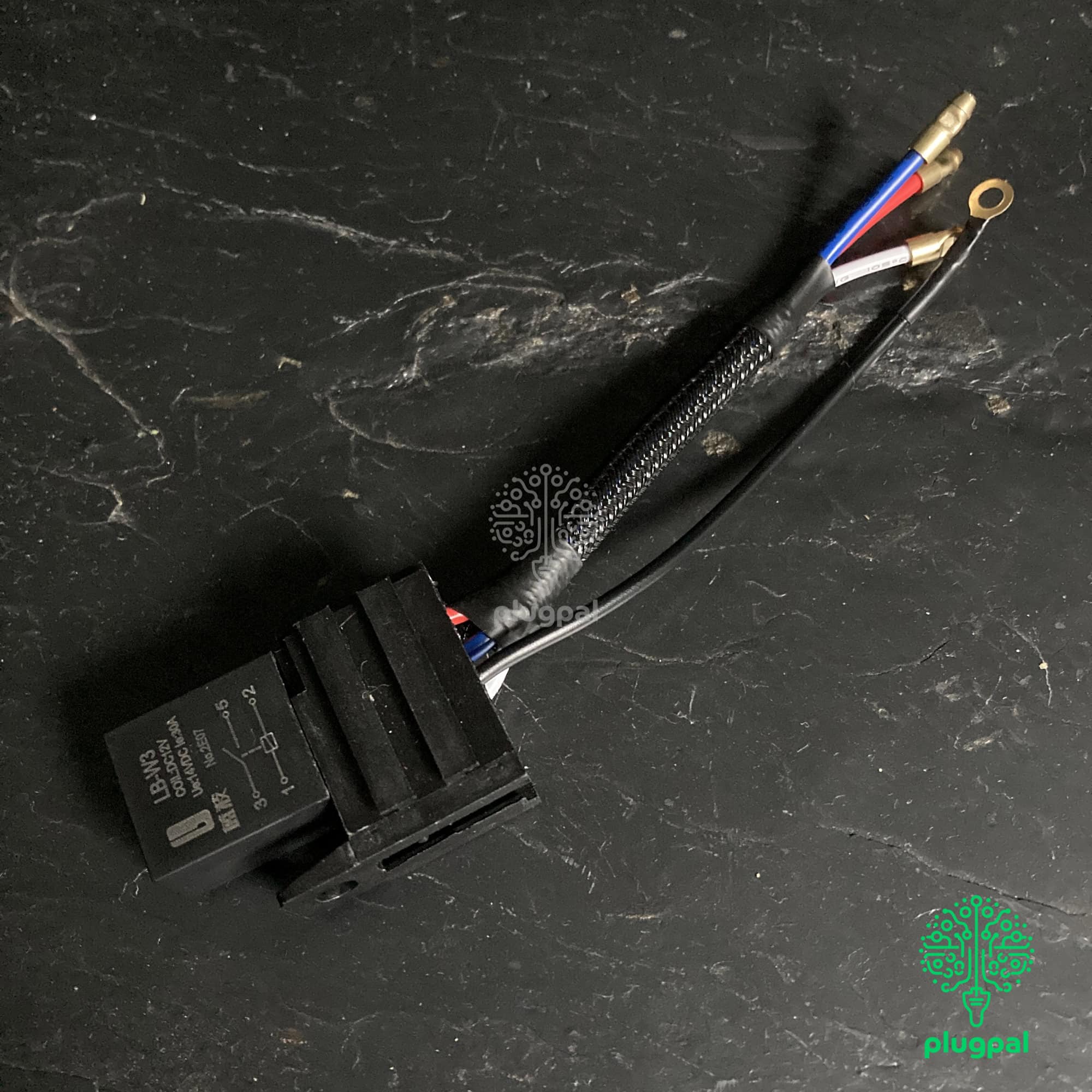

Improve the reliability of your classic car’s brake lights with the plugpal Classic Car Brake Light Switch Relay. This relay reduces the electrical load passing through the brake light switch, helping protect the switch and deliver full power to your brake lights.
Classic cars often use a mechanical switch mounted directly to the brake pedal. When you press the pedal, the switch sends power to the brake lights. Over time, the electrical load can cause the switch contacts to deteriorate. Poor-quality replacement switches can also suffer from premature failure.

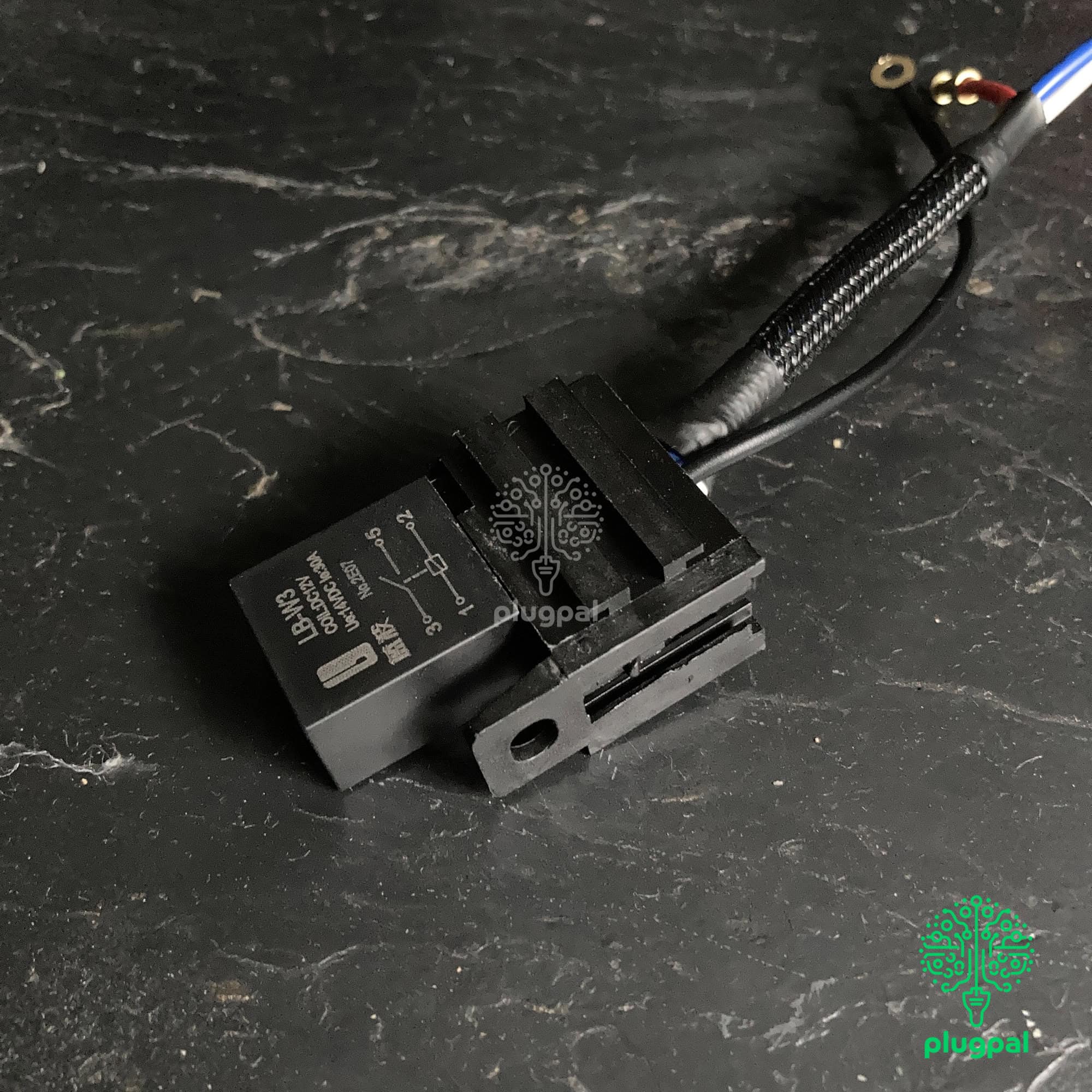

The plugpal Classic Car Brake Light Switch Relay provides a simple solution. The brake pedal switch only needs to activate the relay. The relay then handles the higher current required by the brake lights.
Protect Your Classic Car Brake Light Switch
A standard brake light switch carries the electrical current needed to operate the brake lights. This can place unnecessary stress on the switch contacts.
The plugpal Classic Car Brake Light Switch Relay moves this higher electrical load away from the switch. This reduces the current flowing through the brake pedal switch and allows the relay to supply power to the brake lights.
Benefits include:
- Reduces electrical load through the brake light switch
- Helps protect brake light switch contacts
- Allows the brake lights to receive a strong 12V supply
- Improves brake light system reliability
- Helps extend the useful life of the brake light switch
- Ideal for classic car restoration and electrical upgrades
- Suitable for many classic British cars
Two Wiring Options
The plugpal Classic Car Brake Light Switch Relay offers two ways to provide power to the relay.
Option 1 – Use the existing switch supply

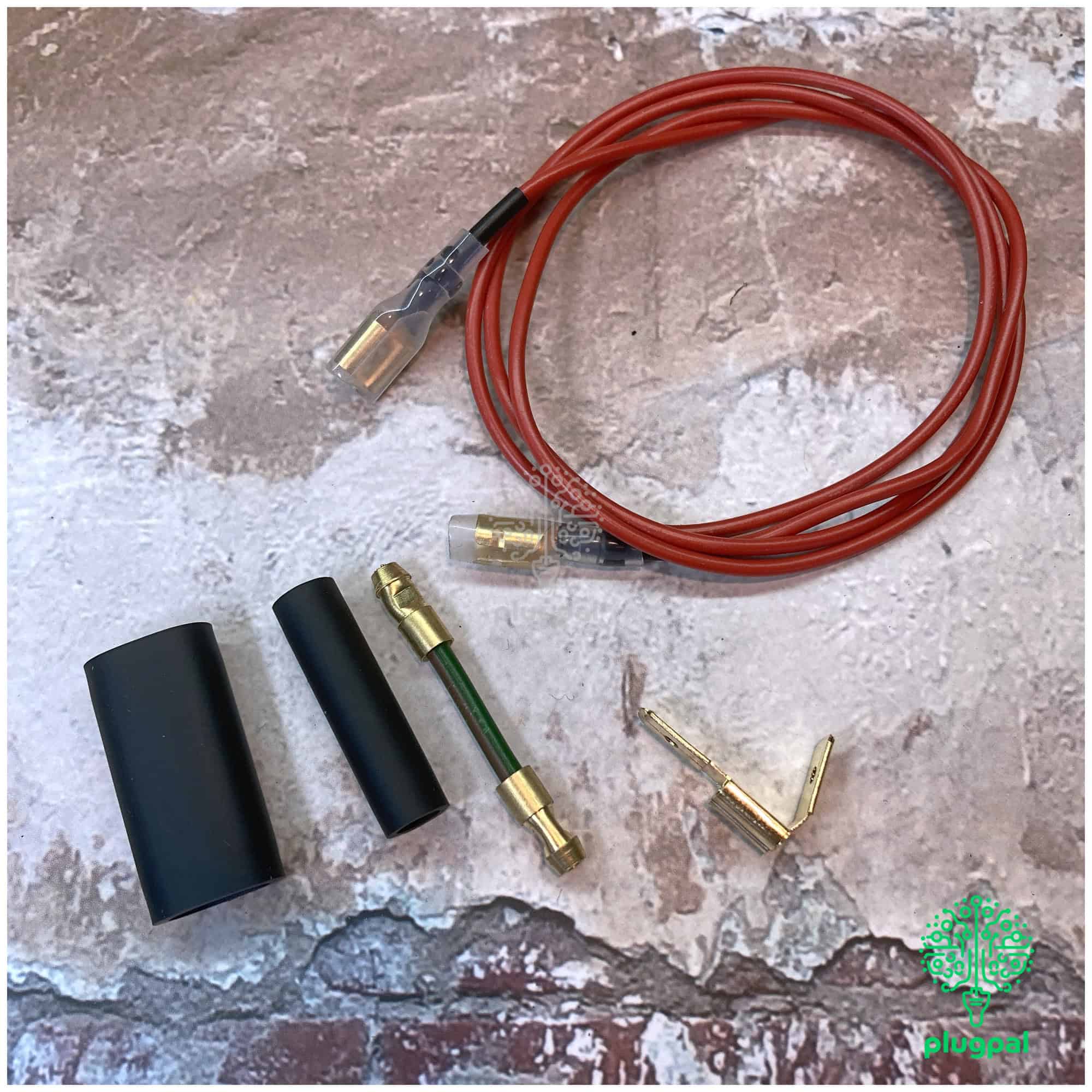

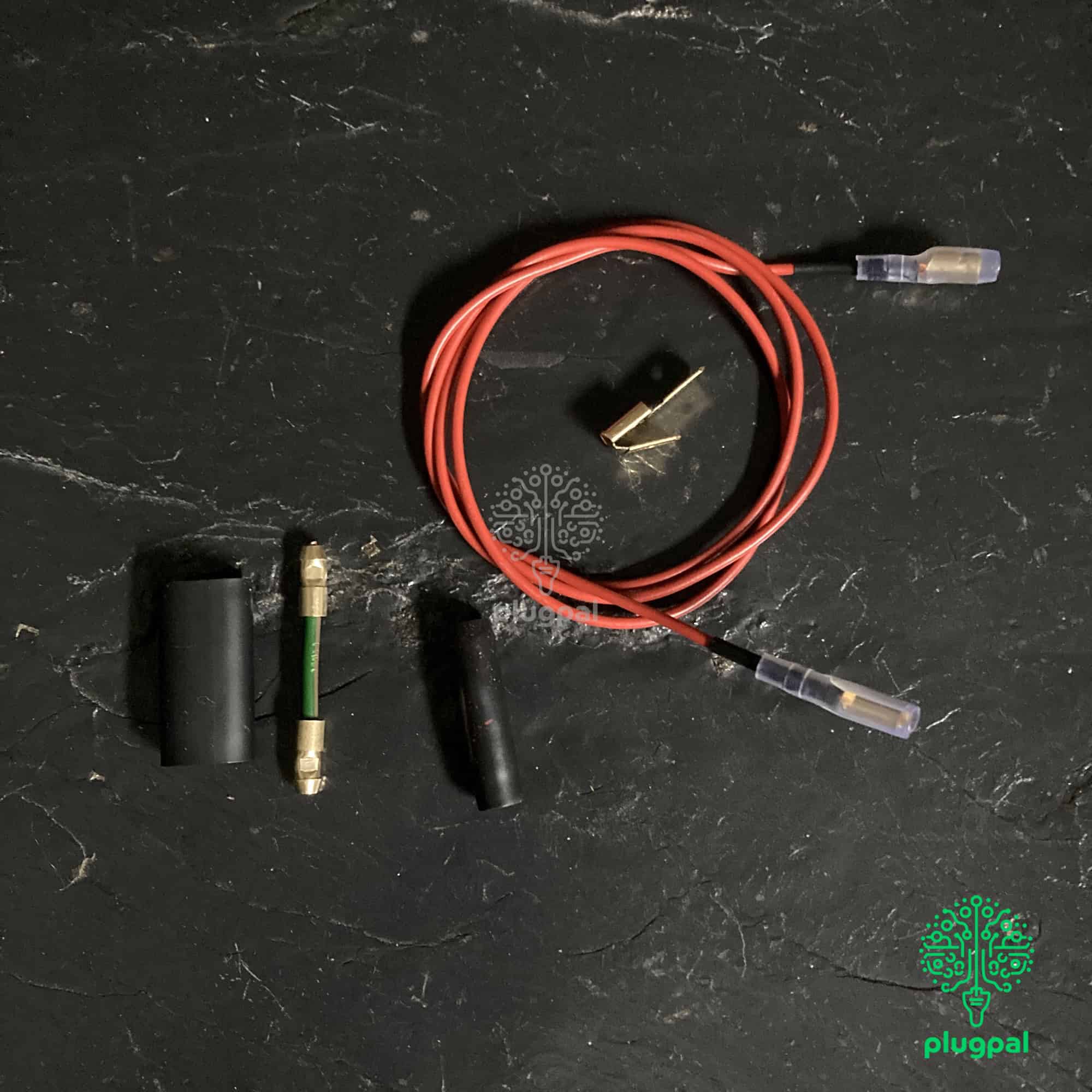

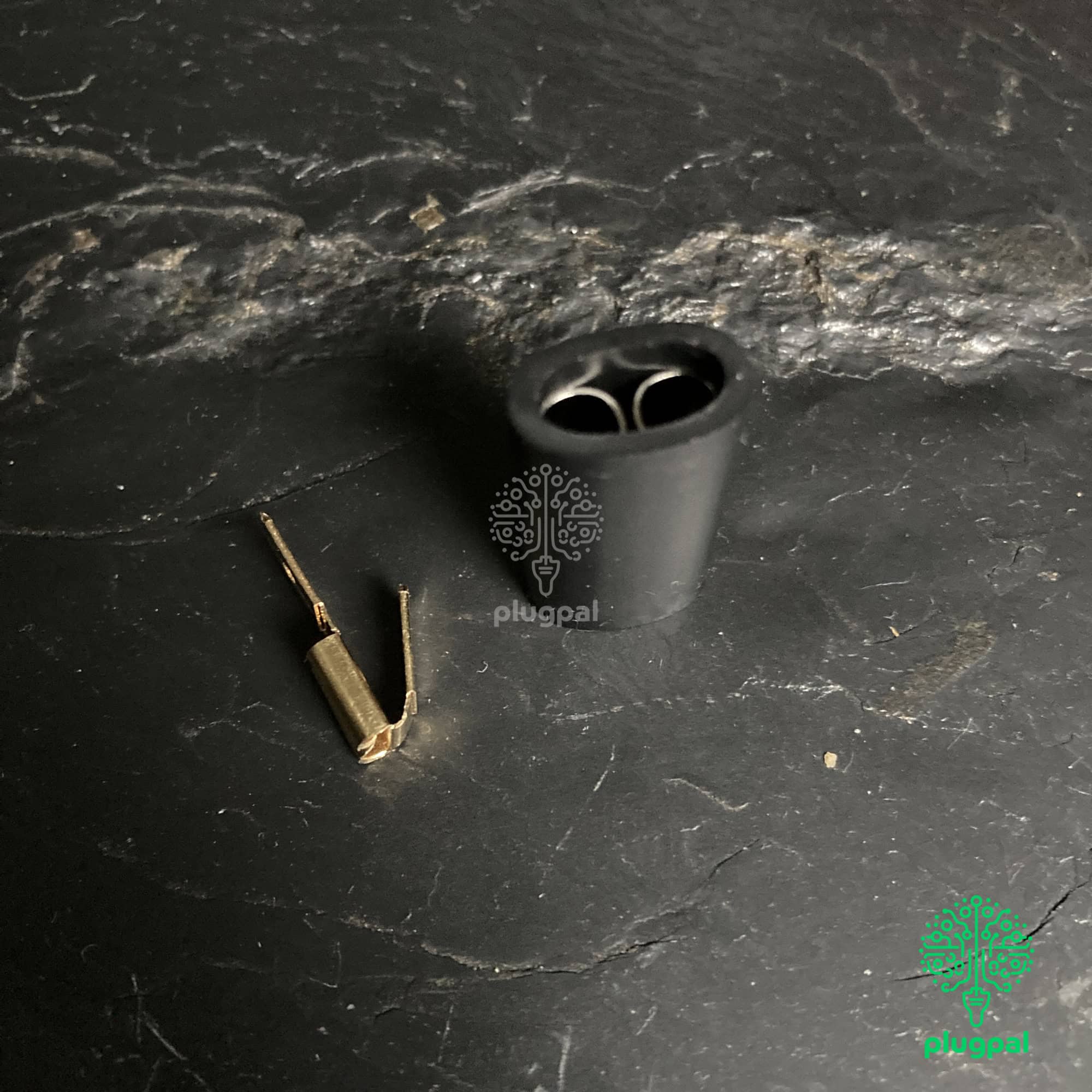

The relay can use the 12V supply already connected to the brake light switch. The supplied Lucas bullet double connector and jumper wire divert this supply to the relay.
This option keeps the installation simple and avoids running a separate power cable to the relay.
Option 2 – Use a dedicated 12V supply
Alternatively, you can provide the relay with its own 12V supply. The supplied extension lead makes it easy to connect the relay directly to a suitable power source.
The kit also includes a single Lucas bullet connector. This connects the relay output to the existing vehicle wiring that supplies the brake lights.
Designed for Lucas Bullet Brake Light Switches

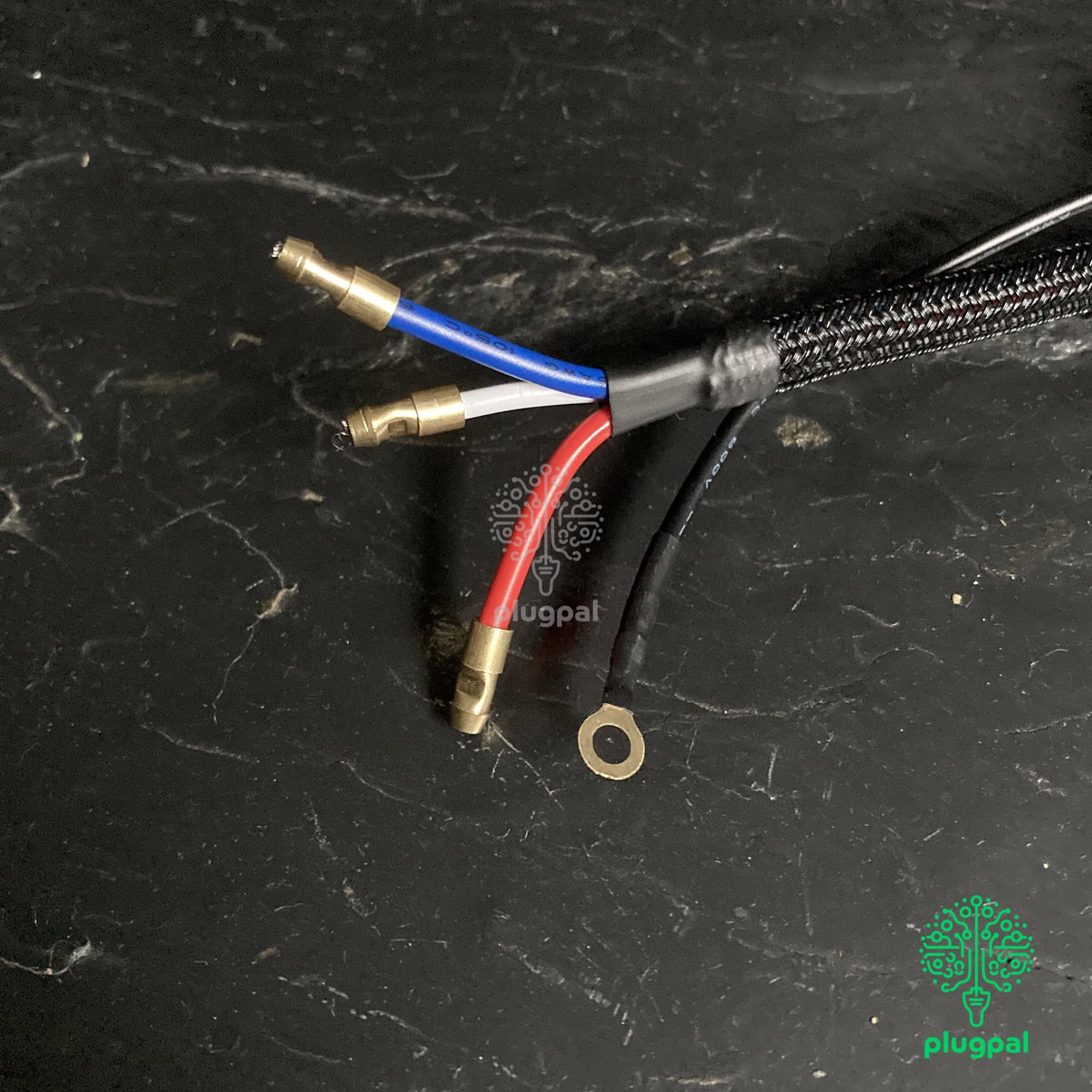

This relay suits brake light switches activated directly by the brake pedal. It uses 4.7mm Lucas bullet connectors for connection to the vehicle wiring.
It is suitable for switches such as the BHA4675 and similar classic car brake light switches.
Please check your existing brake light switch before ordering. This product is designed for a brake pedal-operated switch with Lucas bullet connections.
If your classic car uses a pressure-operated brake light switch with spade terminals, you need a different relay solution. See the plugpal Brake Light Pressure Switch Relay instead.
Quality Components for Classic Cars
plugpal products are designed specifically for the demands of classic vehicle electrical systems.

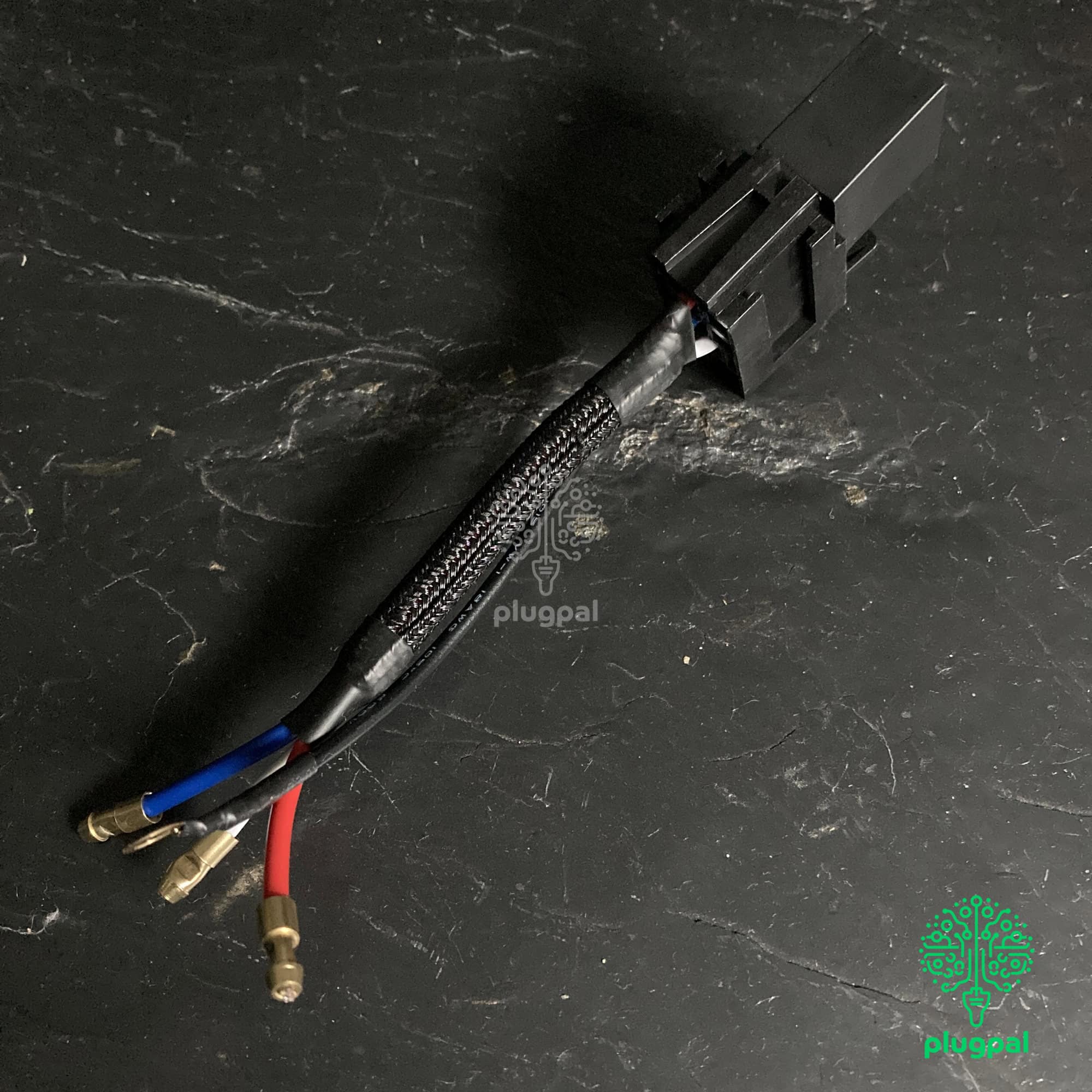

The brake light switch relay uses quality components and robust automotive wiring. We crimp the connections where appropriate rather than soldering them. This helps reduce the risk of stress fractures caused by vibration and movement in an automotive environment.
We also use heat-shrink protection and covers where appropriate. These features help protect the electrical connections from the harsh conditions found inside a classic car.
Ideal for Classic Car Restoration
The plugpal Classic Car Brake Light Switch Relay is a useful upgrade when restoring or maintaining a classic vehicle.
It works particularly well alongside modern LED or higher-output brake light bulbs, where reducing the load on an original-style brake light switch can be especially beneficial.
It is an ideal upgrade for classic British cars where replacement brake light switches may not offer the same quality or durability as the original components.
Simple, Practical Electrical Upgrade
Adding a relay to your classic car’s brake light circuit provides a straightforward way to reduce the load on the brake pedal switch.
The switch activates the relay, while the relay handles the electrical current required by the brake lights. This can help improve reliability and protect an important part of your classic car’s electrical system.
Whether you are restoring a classic MG, Triumph, Jaguar, Austin, Morris or another British classic, this product offers a practical way to improve brake light reliability.
Installation Instructions
The relay can be installed using either of the two wiring methods described above.
Full installation instructions are available on the plugpal website here.
Protect your classic car’s brake light switch and improve brake light reliability.
