Upgrade your classic Ford’s original mechanical voltage stabiliser with the plugpal Ford 5V Solid State Voltage Stabiliser with Mounting Bracket and Spring Clips, designed specifically for Ford negative earth systems. This modern electronic replacement provides reliable, stable voltage for classic Fords.
Ideal for vehicles including:
-
- MK2 Escort
- MK2 and MK3 Capri
- MK1 Granada
…and many other classic Ford and period vehicles requiring a regulated 5V gauge supply with sprung clips into the gauge cluster.
This stabiliser is suitable as a replacement for the following part numbers:
- 71BB10804AA
- 6080207
- 80BB10804AA
- 6015519
- 74EB10804AA
- 1579680_ALT
- 60802070
- 1565006
- H75AB10804AA
- 15650060
- 15017470
Stable 5V Output for Accurate Classic Gauges
Unlike ageing mechanical stabilisers that fluctuate with temperature and vibration, this solid state unit uses modern semi-conductor components to provide:
- Stable, constant 5V DC output
- Improved fuel and temperature gauge accuracy
- Consistent performance regardless of engine revs or electrical load
- Greater long-term reliability than original contact breaker units
- Maintain factory-style wiring while significantly improving gauge stability.

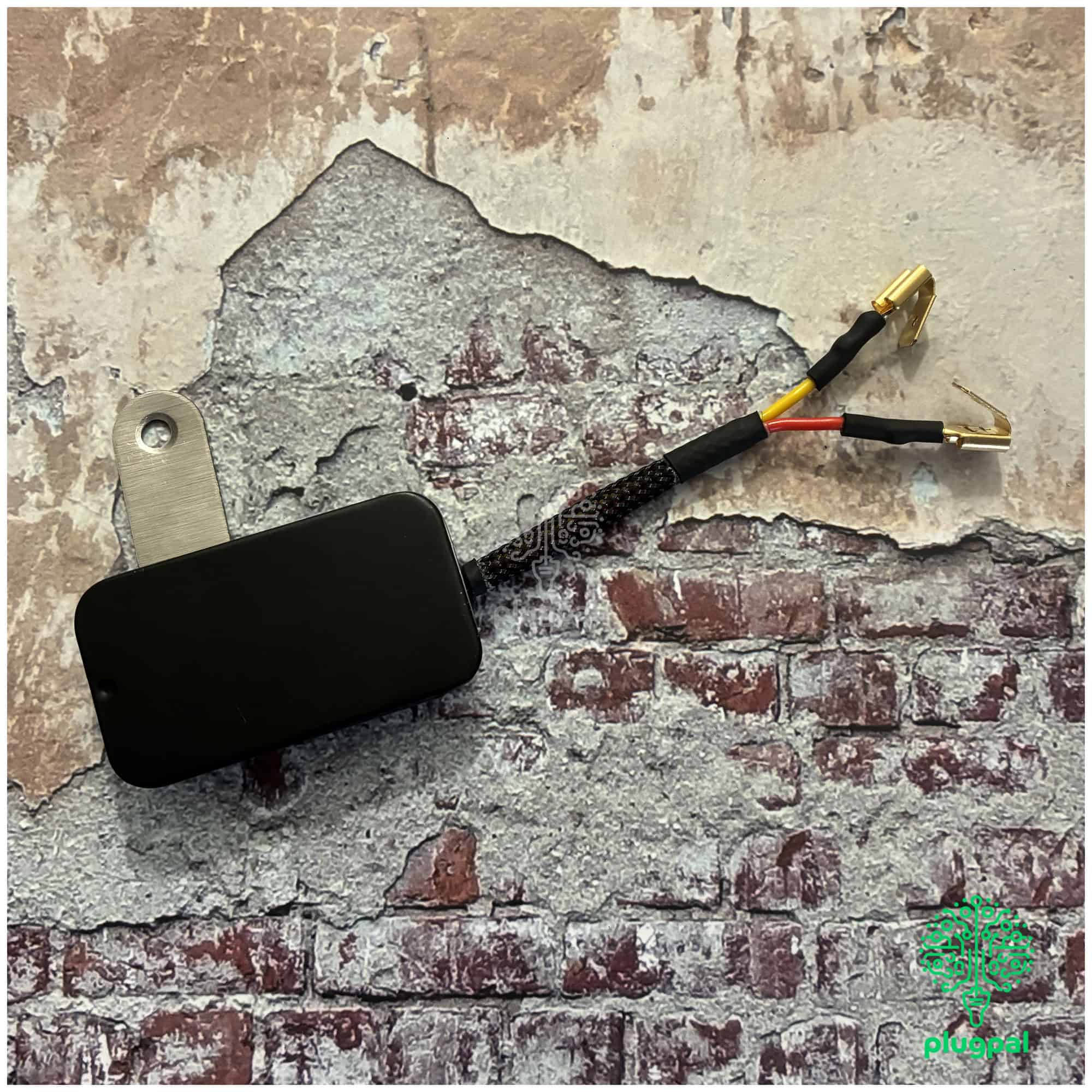

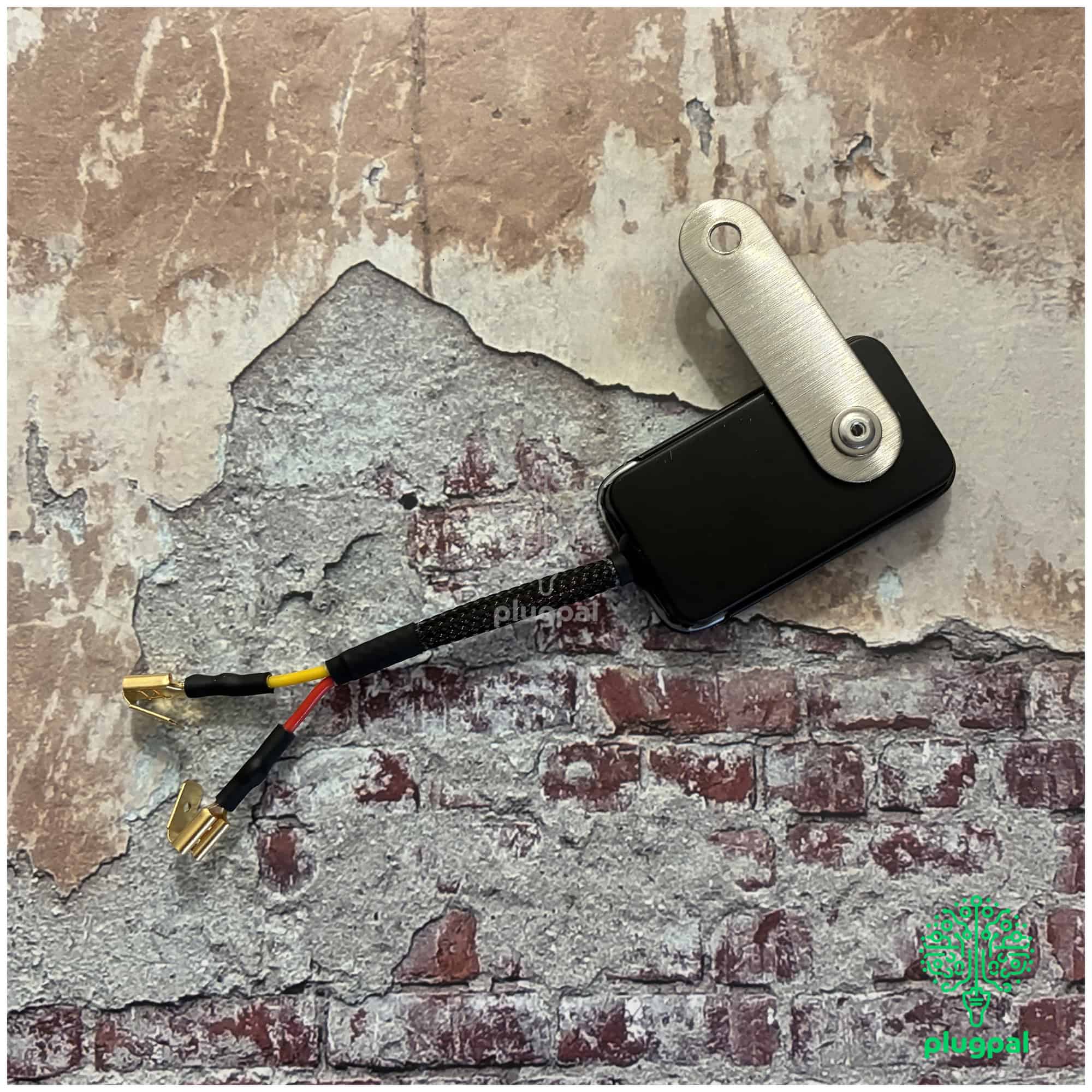

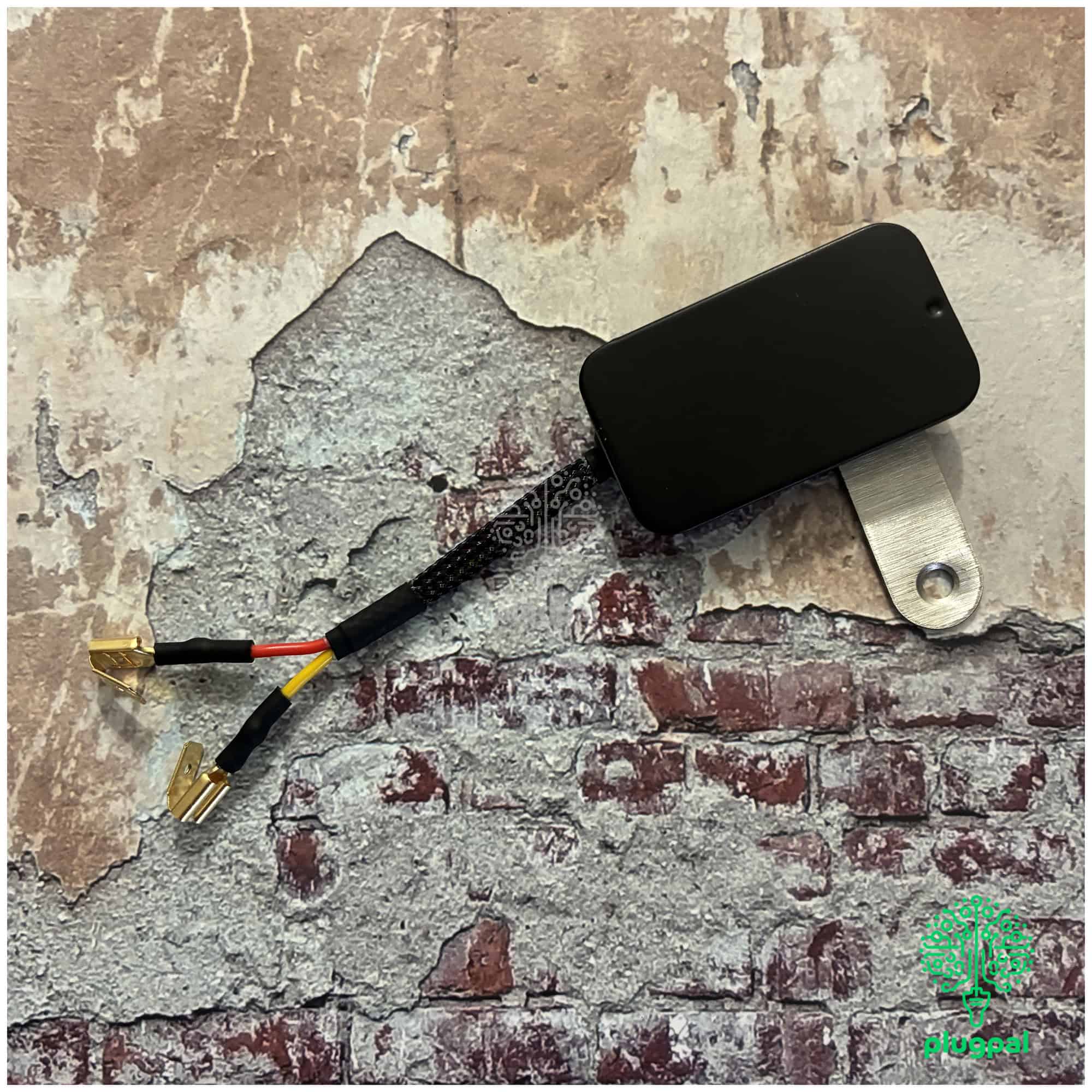

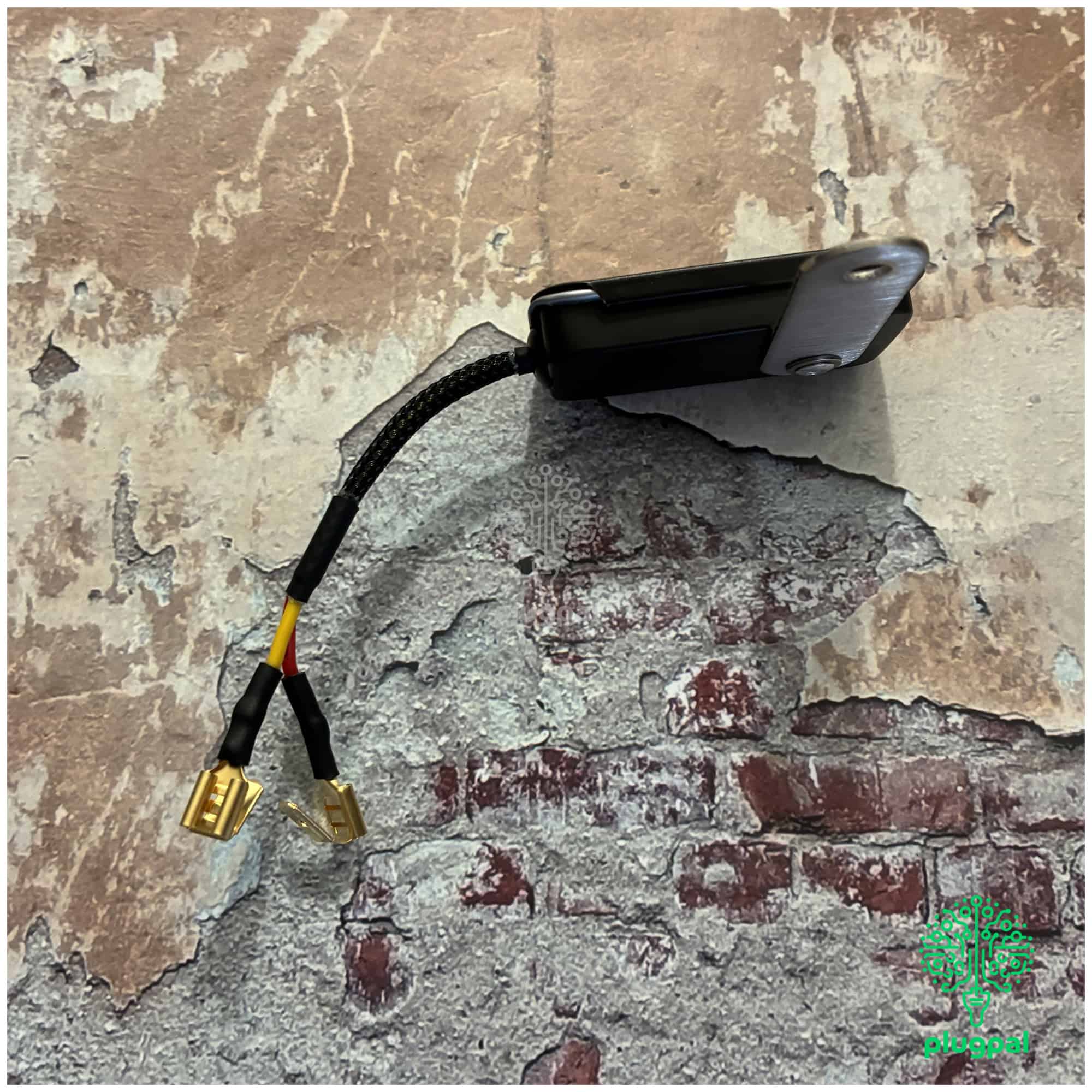

Integrated Mounting Bracket & Simple Installation
- This version features a metal mounting bracket that:
- Secures directly to the vehicle body
- Provides the required ground connection
- Must be bolted to chassis to operate correctly
Product configuration:

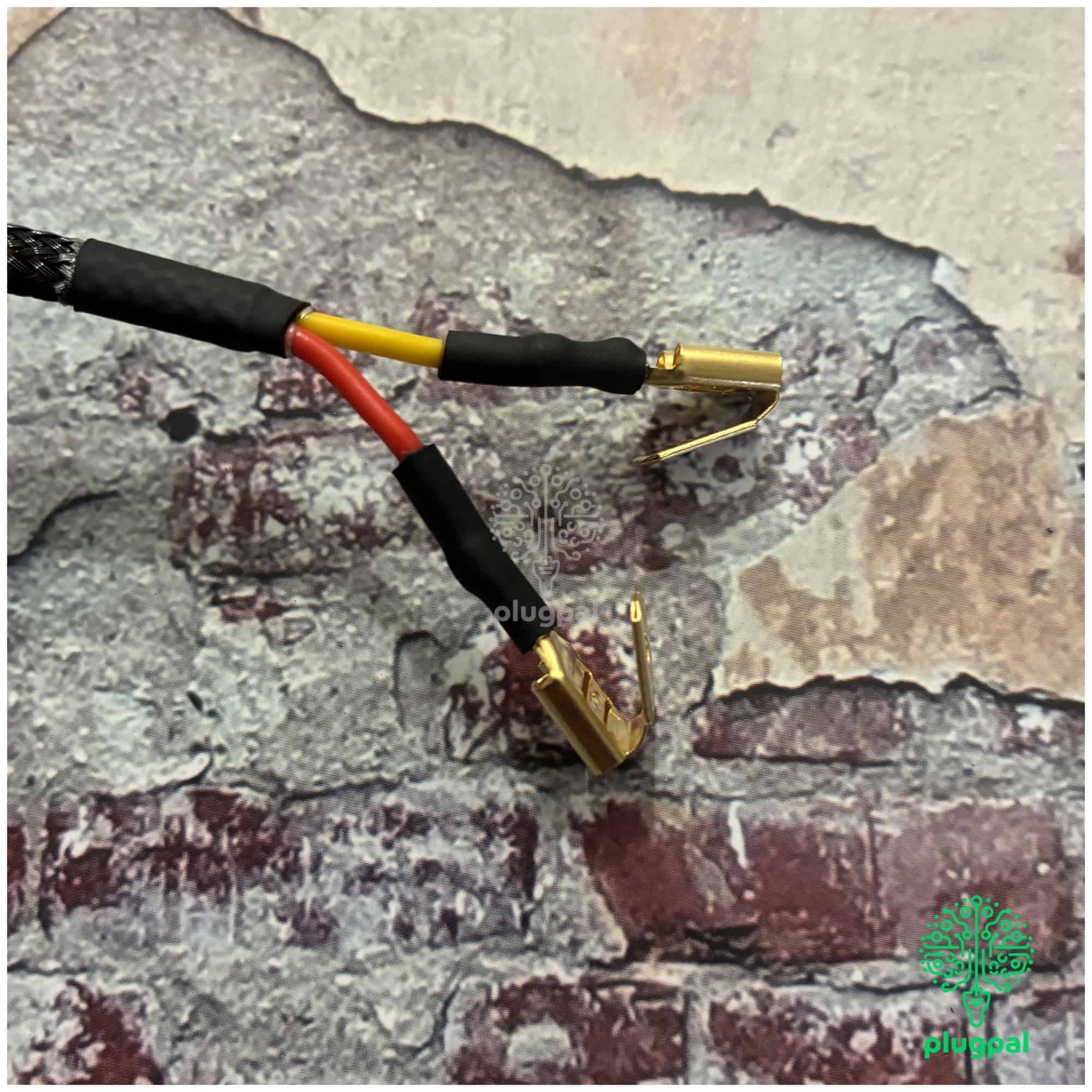

- Two-wire design:
- Red wire – +12V input
- Yellow wire – Regulated +5V output
- Ground is achieved through the mounting bracket
- Metal enclosure acts as an integrated heatsink
- Adequate wiring length for flexible positioning

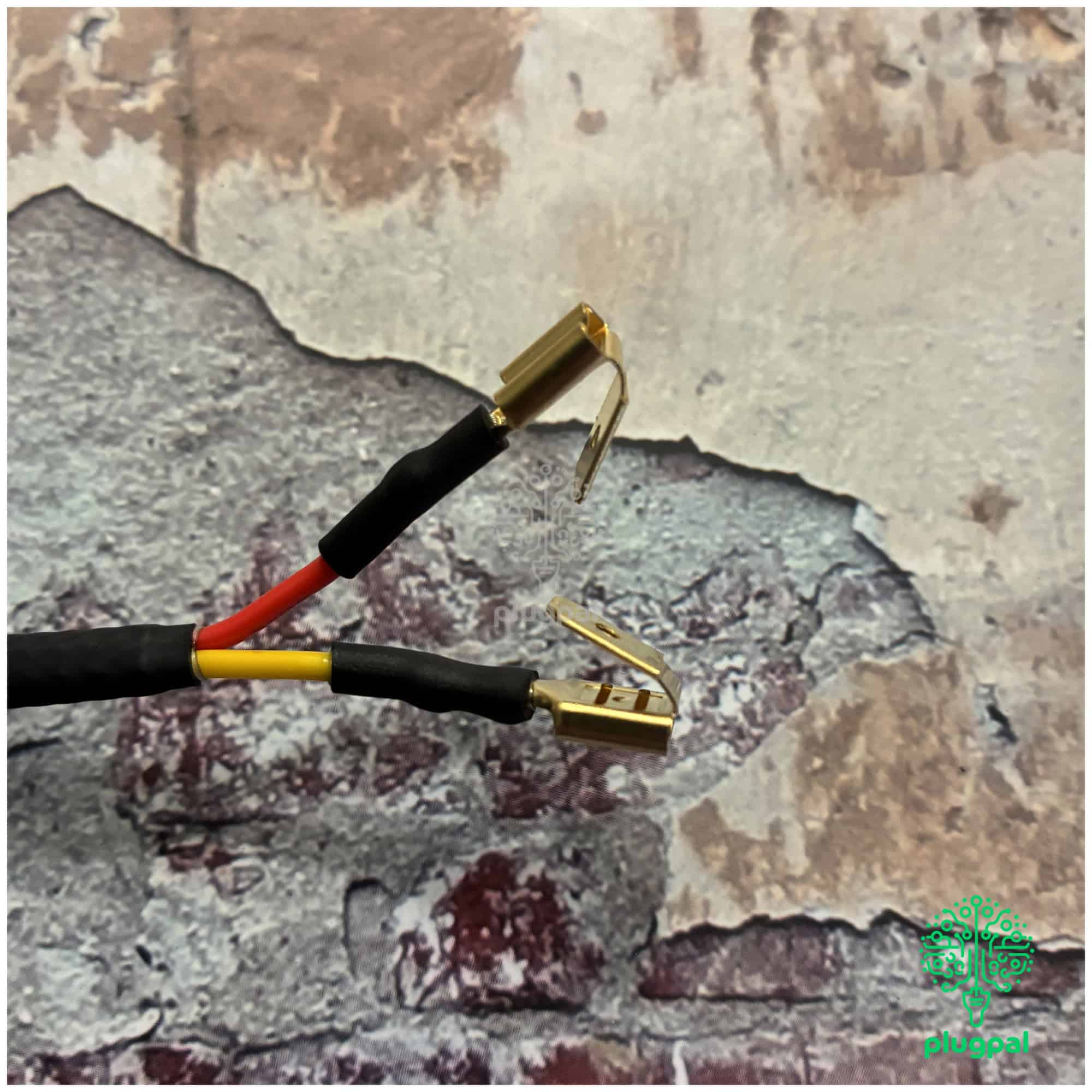

Supplied with:
- 6.3mm sprung terminal on +12V input
- 6.3mm sprung terminal on +5V output
Alternative terminal options may be available upon request.
Technical Specifications
- Output Voltage: 5V DC (regulated)
- Vehicle Compatibility: Negative earth systems only
- Output Current Range: 5mA – 1A
- Recommended Load: Up to two gauges (fuel and temperature)
- Construction: Vented metal casing acts as heatsink
- Connections: Professionally crimped (not soldered) to prevent vibration-related stress fractures
- Protection: Adhesive-lined heat shrink for improved moisture resistance
Engineered specifically for high-vibration automotive environments.
Important Information
- Outputs 5V only.
- For a 10V version, see the plugpal 10V Voltage Stabiliser With Bracket.
- For a 5V version without mounting bracket, see the plugpal 5V Voltage Stabiliser.
- Must be securely mounted to the vehicle body to function correctly.
- Suitable for negative earth vehicles only.
- If being installed not using the original loom stabiliser connections, a fused 12v supply is advised.
- Instructions for the fitting of this unit are available on this page.
Reliable 5V Voltage Regulation for Classic Cars
Whether you’re restoring a vintage Ford or replacing a faulty original stabiliser, the plugpal 5V Solid State Voltage Stabiliser with Bracket provides dependable, modern performance while retaining classic compatibility.
Ensure stable and accurate dashboard gauge readings in your classic car with a purpose-built solid state solution.
